The Building will be R.C.C. Framed Structure Pile Foundation with columns, Plinth Beams, Lintels and Roof Beams etc.
The Roof is at 10’ level, Lintel at 7’ level and windows sill at 3’ level from the finished Flooring. All reinforced cement concrete work
will consist of 20 mm correct size hard blue granite metal without flakes and river sand confirming to IS code. Necessary pucca shuttering.
All reinforcement work shall consist of
good quality HYSD bars for main reinforcement and mild steel bars for stirrups for columns, lintels and other reinforcement cement works.

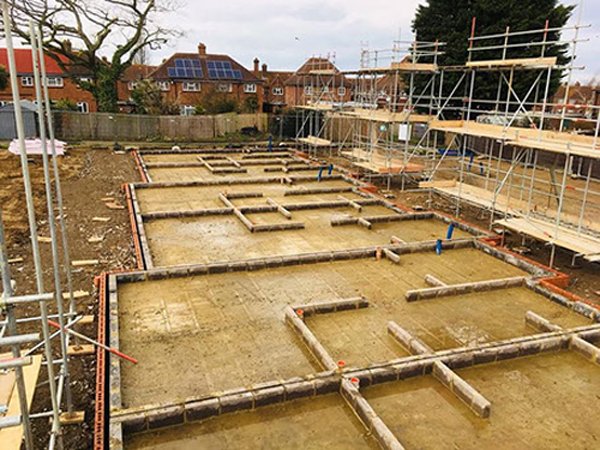

FOUNDATION AND BASEMENT
Pile Foundation with in 1:2:4 mix concrete
Depth of Pile Structure 6 m from Ground level
Plain cement concrete 1:4:8 leveling course for Pile Cap Matt using 40 m.m Metal (4” thick)
R.C.C. column in 1:2:4 mix
Height of Basement 3’0” from existing Ground Level (Including Plinth Beam)
Brick Masonry wall 9: thick in Basement
R.C.C. Plinth beam in 1:24 Mix As per Structural Drawing.
Filling in the Basement: with excavated soil free from clay and impurities, well consolidated and compacted in layers
Plain Cement Concrete 1:5:10 as Leveling course under Flooring using 25 mm or 40 mm Metal 0’4” thick)
SUPERSTRUCTURE
9” thick Brick Masonry wall in cm 1:5 for all External walls and 4.5” thick brick Masonry wall in cm 1:3 for all internal walls
Parapet wall of 4.5” thick and 3’3” height
Height of the superstructure (Ground Floor 10’0”, First Floor 10’0”) (Including Slab thickness)
Brick Masonry cupboards with cuddapah slab shelves
R.C.C. work with 1:2:4 Mix
Roof Slab 4” thick OR As per Structural Design
Precast Lintels for Doors, Windows openings and Arch openings
Lofts 2” thick and 2’0” wide in kitchen and bed Rooms
Roof Beam As per Structural Drawing
Black Galaxy Granite kitchen Platform with Stainless Steel Sink
Provision for exhaust fan in kitchen
Pressed Plastering with Smooth finishing for Internal walls, aesthetic finishing for External walls.
WOOD WORK
Main entrance Door in Teak wood with varnish finish
Main Door Size 3’6” x7’0”
Main Frame size 4” x 3” shutter Frame size 4” x 1.5” shutter plank 1” thick
All other Doors are single Shutter flush Door with Second Quality Teak wood with paint Finish
Single Shutter 30mm thick flush door
Main Frame size 4” x 2.5”
Bed Room Door Size 3’)” x 7’0”
Toilet Door size 2’6” x 7’0”
All windows are in Aluminum Sliding Window with Grill Fixing.
Louvered Glazed ventilators for Toilets
P.V.C. Doors for All Toilets
Fixtures for Doors
Godrej lock for main Door and Bharath or Laxmi Locks for other Doors
Tower bolts for Doors (Aluminum)
Door Stoppers for all Doors
Rubber Fixtures on the Back for all Doors
Handles for all Doors / windows

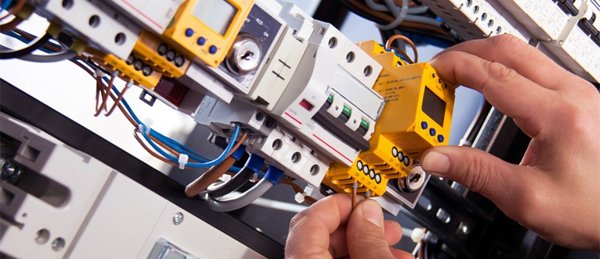

ELECTRICAL WORKS
All wiring shall be done for suitable three phase connection
Fully concealed wiring using ISI cables
Using Anchor Romo Brand Switches
All Light and Plug Points Connected to Distribution Box.

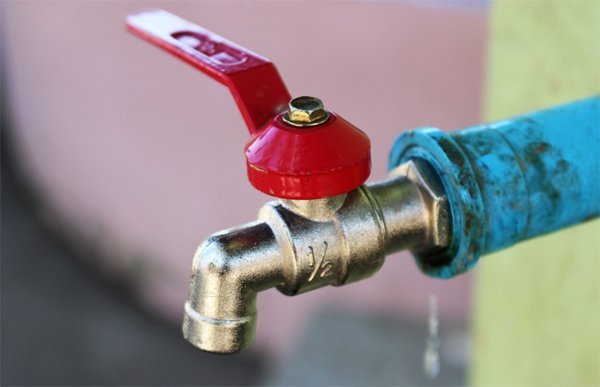

WATER SUPPLY AND SANITATION
Internal water supply lines with ¾” PVC pipes (Concealed) ( using Ashirvad (PVC pipes)
External water supply lines with 1” PVC pipes (open) (using I.S.I. Pipes).
White Color wash Basin E.W.C./ I.W.C. will be providing.
4” P.V.C. Lines for Toilet waste Lines and Rain water Fall Pipes.
Providing Necessary Plumbing Chambers
All waste Lines Connected to main Chamber
Metro Brand taps will be Providing.
PAINTING AND WHITE WASHING
For Ceiling three Coats of good Quality white Lime wash using Clean Shell Lime or Cem
For Internal : Full putty followed by tractor Emulsion paint as per IS requirement
For External : Ace paint as Per IS requirement
For wood work and steel work: synthetic enamel paint over a primer coat of paint
For front door : shellac varnished (3 coats) after smoothening

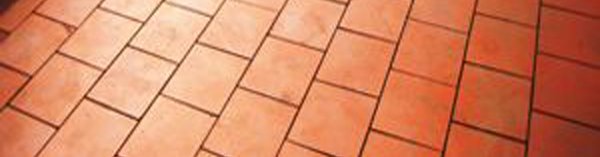

WEATHERING COURSE
Using Brick jelly with lime mixing and pressed Tiles in Terrace
FLOORING AND DADOOING
Good quality joint less ceramic Tile Flooring of size 24” x 24” for all Rooms
Basic cost of Tile is Rs50-/ sft
Skirting in all Rooms will be 4” height in acolor matching to the flooring Ceramic Glazed Tiles dadooing:
